Plug-in connectors and sockets for data transmission are already an integral part of future-oriented device design. In industrial environments, they must be able to meet high requirements due to increasing data rates. This means that the quality of individual components needs to be higher and higher.

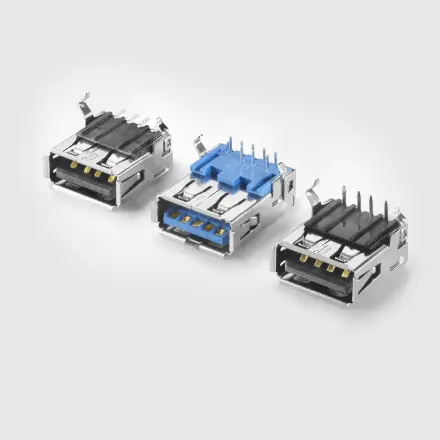

Our broad portfolio of OMNIMATE® USB PCB sockets of types A, B and C for transmission standards 2.0, 3.0 and 3.1 guarantees high data transfer rates, robust plug & play operation and reliable PCB assembly in SMT, THT or THR soldering processes. These USB sockets offer a reliable and space-saving solution for connecting equipment via USB directly on the PCB.
The sockets are optimised for industrial applications and offer high mechanical durability. The extended temperature range from –40 °C to +85 °C guarantees reliable performance, even under extreme conditions. With gold-plated contacts for high signal quality and long service life, OMNIMATE® USB sockets offer the ideal solution for industrial requirements.

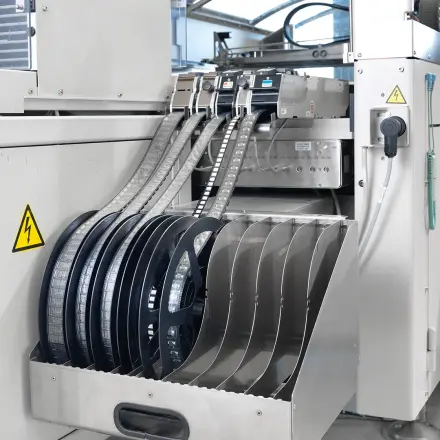

The portfolio of HDMI PCB sockets is perfectly suited for processing in automated SMT processes thanks to its Tape-on-Reel packaging.
Our products enable reliable PCB assembly for all technologies, SMT, THT or THR soldering, and for every assembly process.
The 90°/180° variants enable optimum adaptation to different housing formats.

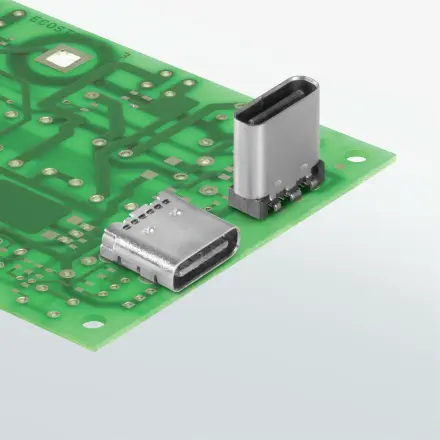

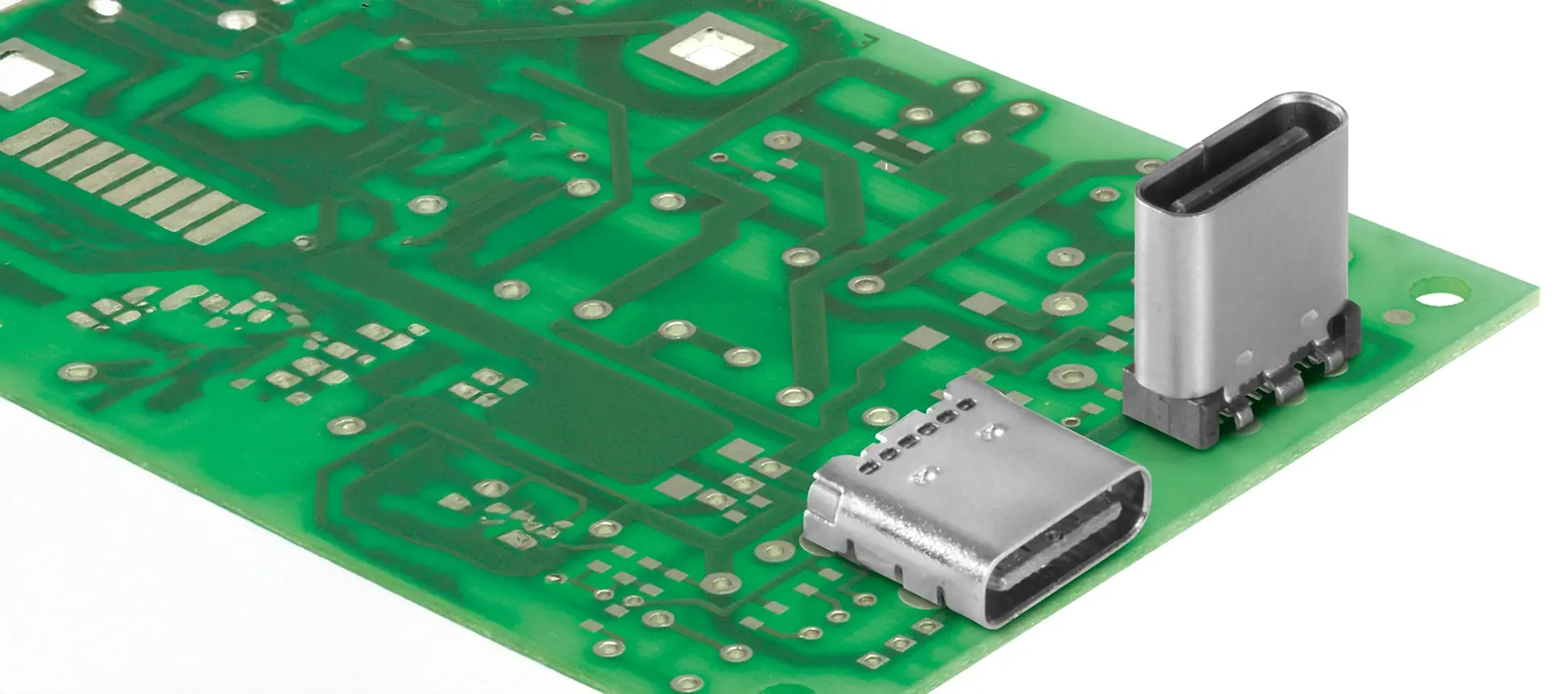

The point-symmetrical shape of USB-C allows it to be plugged in in any alignment and supports downloading, data transmission and audio and video transmission via a single connection.
OMNIMATE® USB sockets are used in a wide range of industrial and technical applications. They are ideal for industrial controllers and machine controllers, as they guarantee reliable and fast data transmission, even under ambitious conditions. USB sockets also play an important reel in embedded systems to ensure stable communication between different components. They are also used in communication and entertainment technology, where they connect equipment via USB. Finally, they are also indispensable in measuring and testing devices, as they enable fast and precise data transfers, which are needed for accurate measurement results.
Service interfaces, touch screens, industry PCs, HMI

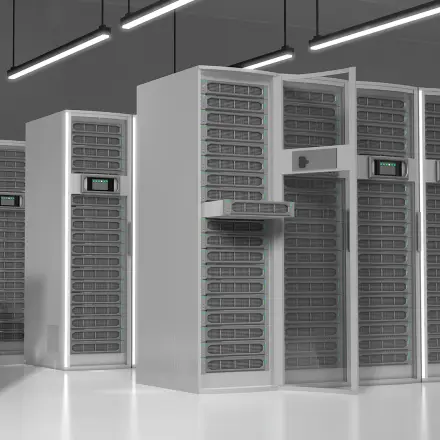

Data centres
Industrial controls
Communication and multimedia devices
OMNIMATE® USB sockets support USB 2.0, USB 3.0 and USB 3.1 transfer standards to guarantee high data transfer rates and reliable connections.
Our USB sockets are available for SMT (Surface Mount Technology), THT (Through-Hole Technology) and THR (Through-Hole Reflow) soldering processes. This allows them to be used in various manufacturing processes.
OMNIMATE® USB sockets offer an extended temperature range from –40 °C to +85 °C to guarantee reliable performance even under extreme conditions.
USB Type C offers a higher data transfer rate and can handle higher current strengths, making it an ideal solution for modern, powerful equipment. In addition, the connection is reversible, which makes handling easier.
The gold-plated contacts ensure high signal quality and a long service life for the connections, guaranteeing reliability and performance throughout the entire service life.
The USB sockets are ideal for industrial controllers, machine controllers, embedded systems, communication and entertainment technology, as well as measuring and testing devices.
