Flexible and time-saving cable management

Flexible and time-saving cable management

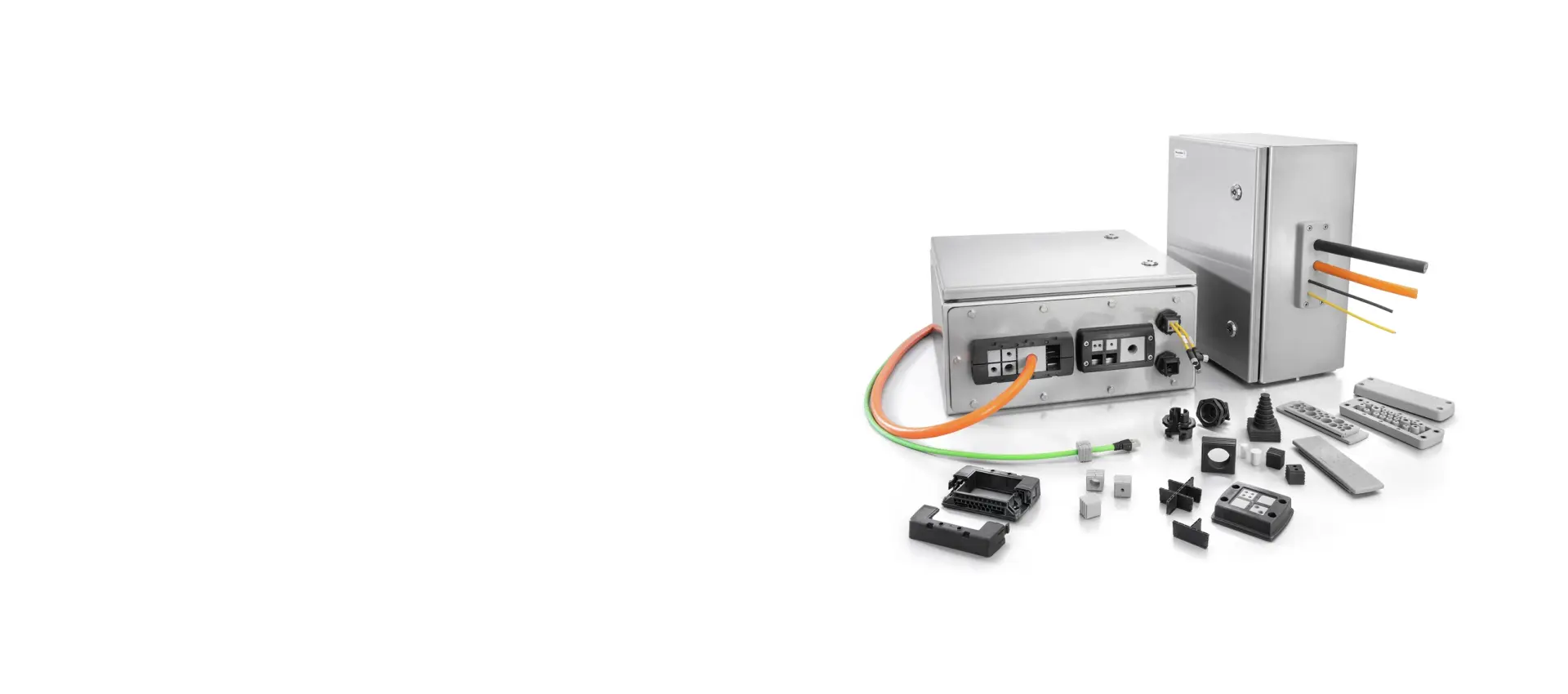

The management of pre-assembled cables is a major challenge for many plant engineers – especially when cables run through the walls of housings or control cabinets. A flexible cable entry system speeds up installation, facilitates service and minimises downtimes. With the Cabtite cable entry system, assembled and unassembled cables in control cabinets, housings and machines are reliably sealed and protected against tensile stress.

Your benefits at a glance

0 %

Cost Saving

Up to 30% cost savings compared to conventional cable glands

0 %

Space Saving

Reduce installation space by more than 50% with our cable entry system solution

0 %

Time Saving

Up to 50% time savings in installation time compared to cable glands

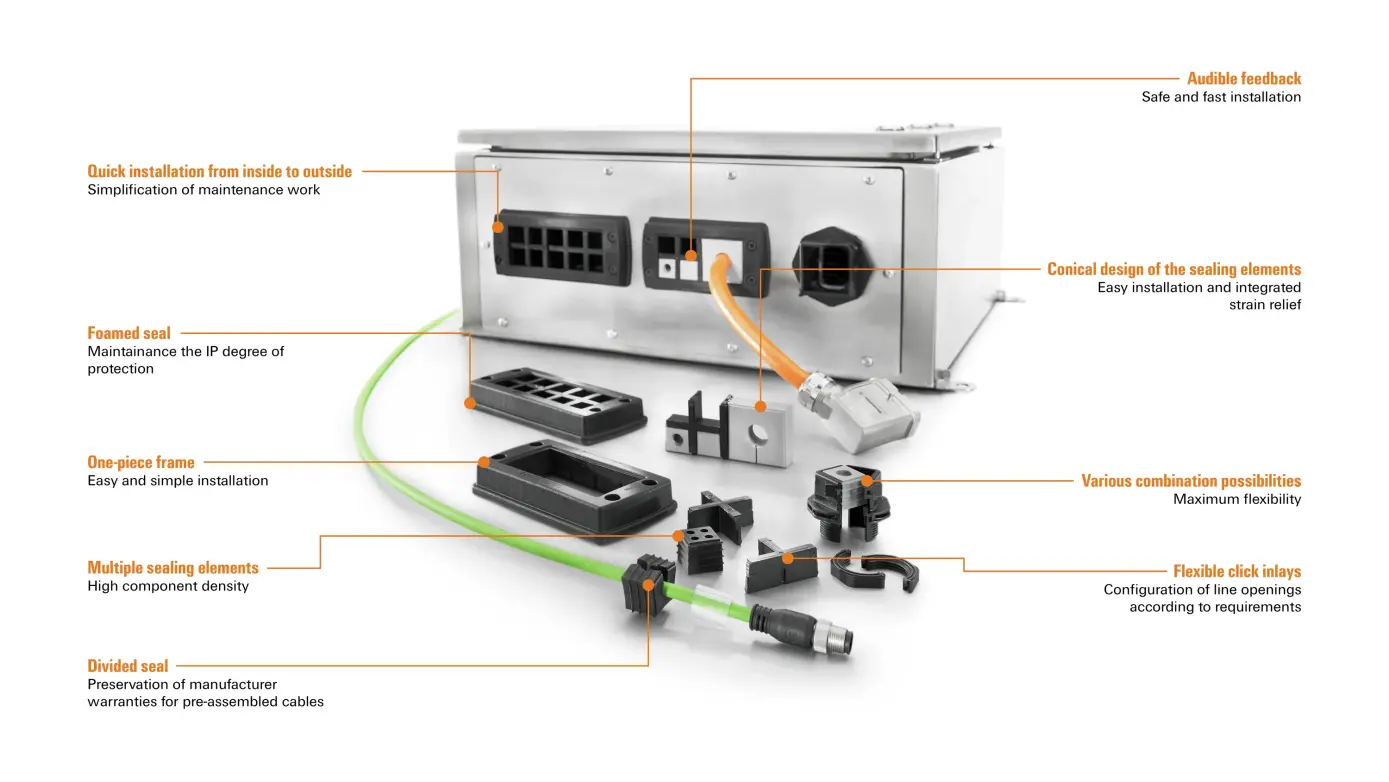

Product-specific advantages

Your benefits at a glance

Space saving

Space saving

Reduce installation space by more than 50 % with our cable entry system solution

Internationally approved

Internationally approved

Cabtite is approved in accordance with UL 508A, UL50, UL50E, and CSA C22.2 regulations, Type 4x and 12, File E223801

Service and maintenance friendly

Service and maintenance friendly

Fast adaptation of cable management within system changes, service, and maintenance cases

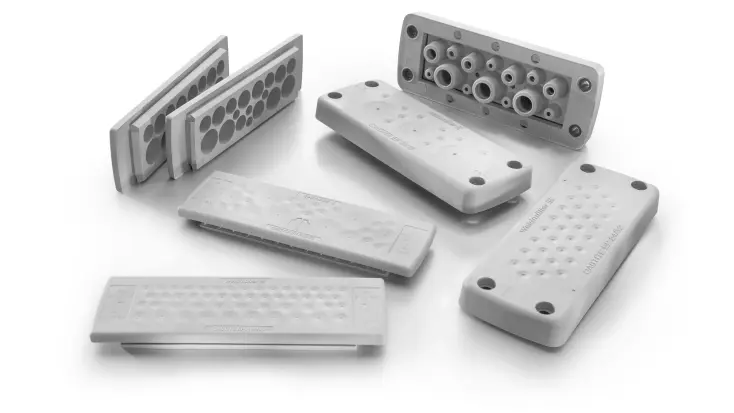

Cabtite - Cable Entry Plates Product innovation

Weidmüller offers a possibility to insert cables and wires without plugs into control cabinets, enclosures or machines in the smallest possible space, simply and in a space-saving manner with the new Cable Entry Plates.

Cabtite - Cable Entry Plates
Your benefits
  • High packing density with low space requirement
  • Two high protection classes IP54 and IP66 available
  • Suitable for different wall thicknesses
  • For mounting from the outside to the enclosure wall
  • Simple and quick solution for inserting plugless cables, hoses, and conductors.
  • Up to 40 % time savings compared to installation with cable glands

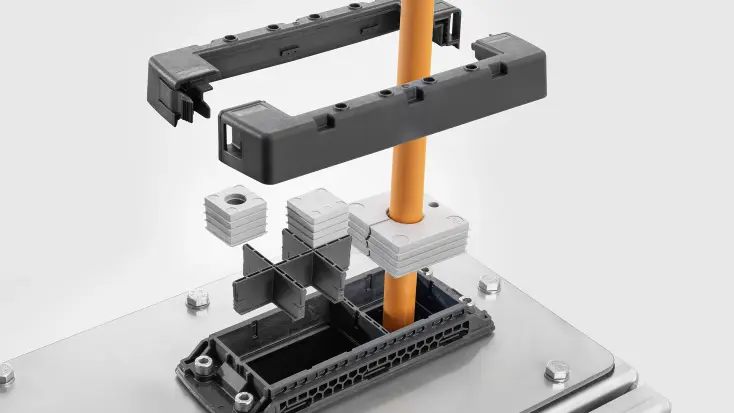

Handling - Cabtite Cable Entry System Frame Solution

Handling - Cabtite Cable Entry System Frame Solution

Handling - Cabtite Cable Entry System Frame Solution

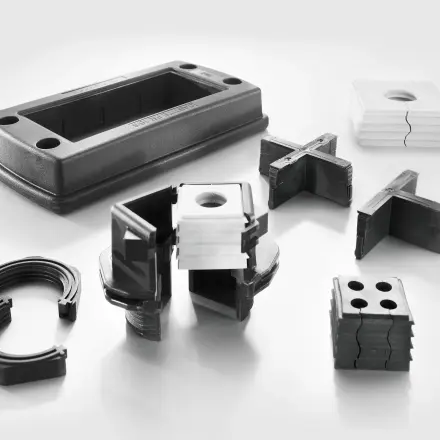

Get to know the product family of our Cabtite Cable Entry Systems.

In addition to the product characteristics you will learn more about the handling of the cable entry system frame solution.

TECH TALK - Cabtite cable entry system: Time-saving installation

TECH TALK - Cabtite cable entry system: Time-saving installation

TECH TALK - Cabtite cable entry system: Time-saving installation

In our TECH TALK video series we focus on our customers challenges by analyzing the root-causes and briefly present you the Weidmüller solution.

You will learn how to save time by using our Cabtite cable entry system instead of conventional cable glands.

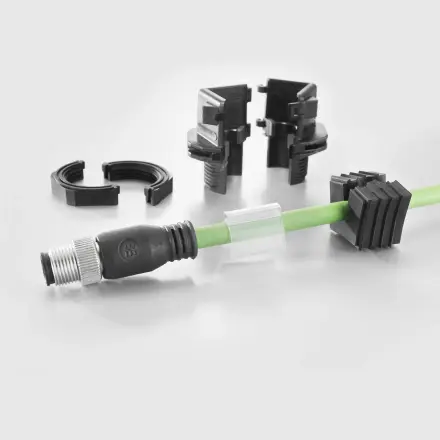

Handling - Cabtite Cable Entry System separable retrofit Cable Gland Solution

Handling - Cabtite Cable Entry System separable retrofit Cable Gland Solution

Handling - Cabtite Cable Entry System separable retrofit Cable Gland Solution

Get to know the product family of our Cabtite Cable Entry Systems.

In addition to the product characteristics you will learn more about the handling of the separable retrofit cable gland solution.
