Reliable protection and easy handling

Reliable protection and easy handling

Our distribution boxes are equipped with metal threaded rings as standard. This ensures a particularly secure screw connection. The portfolio includes M5, M8; and M12 distribution boxes in plastic and metal. We also develop customised variants according to your individual specifications.

Clever design for easy handling

Clever design for easy handling

Our smart features such as the hood design with integrated self-assembled connector set new standards.

High-quality materials

High-quality materials

The fully encapsulated signal distributors are designed with premium materials and highest production methods.

Certified for worldwide use

Certified for worldwide use

We guarantee the certification of our products according to worldwide standards and norms.

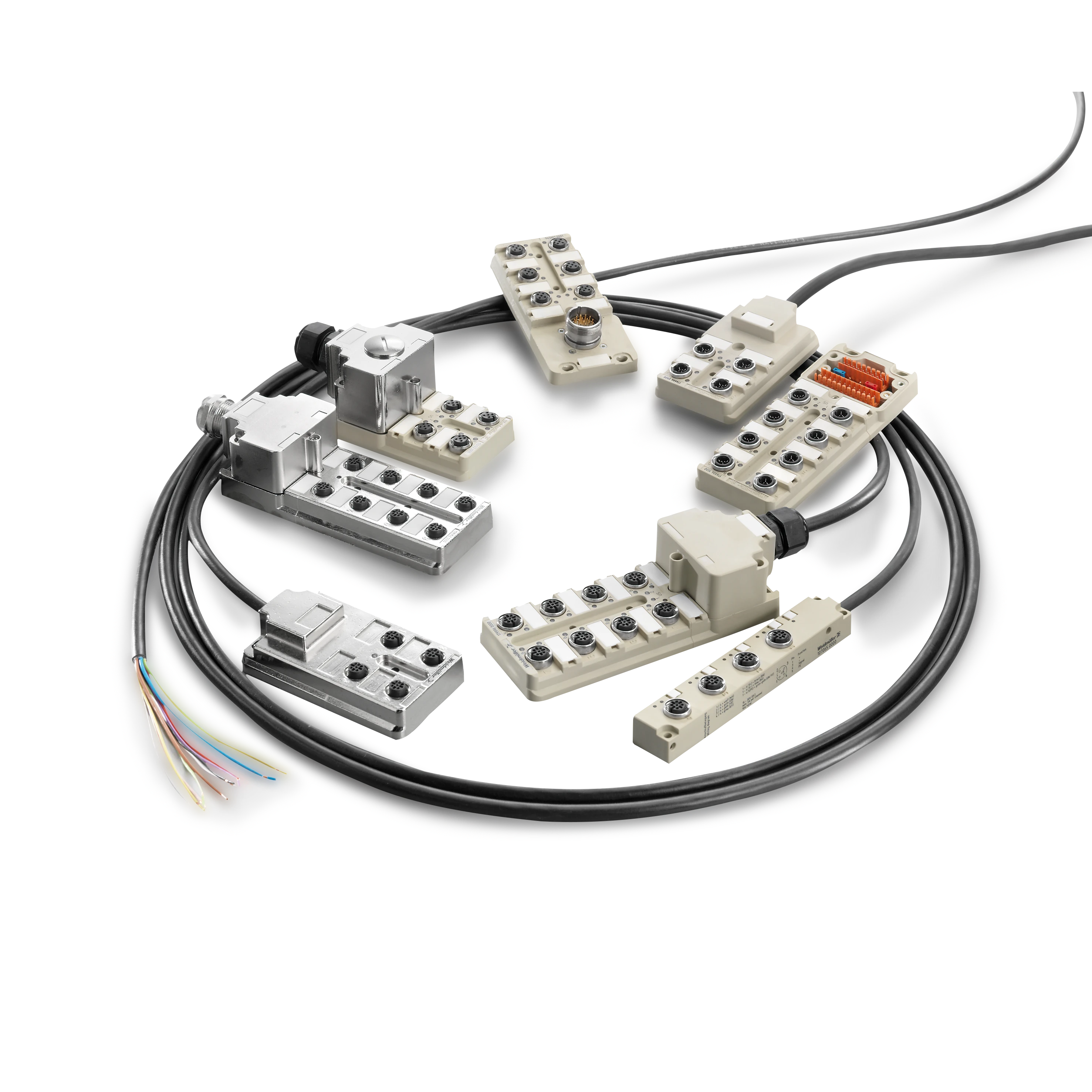

Product range

M8 hood distribution boxes Product innovation

The new M8 hood distribution boxes are extremely compact and offer a userfriendly PUSH IN connection. This enables particularly fast, safe, and efficient cabling in the field. In addition to complete distribution boxes, you will also find assembled hoods, empty hoods, and base parts.

M8 hood distribution boxes
  • M8 I/O ports 3 and 4-pole
  • IP 67 degree of protection
  • UL approval
  • 4, 6, 8 or 10 I/O ports
  • Modular design with complete distribution boxes, base parts and hoods

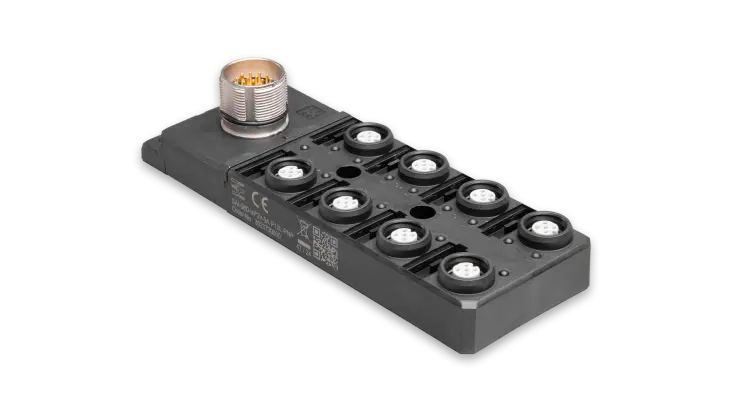

M12 distribution boxes

Used wherever excellent handling is to be combined with rational plug-and-play operation. The SAI family with its hood version with metal threaded rings offers sufficient safety.

  • Compact terminal block
  • Extremely small M12 line distributor
  • IDC connection for direct connection of the sensor cables

M8 distribution boxes

Best solution to collect fast and compact information outside the cabinet. In addition, we offer the patented modules with inclined M8 outlets, which ensures the best possible accessibility.

  • Optimal handling
  • Very small dimensions with the line version
  • Patented distributor with side outlets

SAI logic distributors

Four signals at a time are combined either via an AND or an OR circuit. A four-pin M12 connector transmits the data. Only one input for a maximum of four sensors is required on the PLC.

  • Available with AND circuit or with an AND and an OR circuit
  • Particularly space-saving design
  • Available in two sizes: with either four-way or eight-way M8 distributors

Assembly tools

EX i distribution boxes

  • Easy to install and can be used directly in the EX i zone 1 areas
  • Only the usual barrier has to be installed in advance
  • Available in all conceivable forms and configurations

Screwty® for M8/M12/M23

  • Universal tool for tightening on all common sensor and actuator cables
  • Simply turn the tool to tighten or release the plug in connector
  • An adjustable torque fitting is available, for extra reliability
